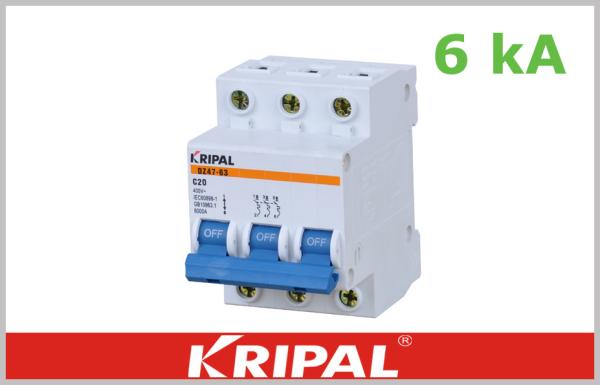

DZ47 MCB Micro Circuit Breaker

Zhejiang KRIPAL Electric Co., Ltd.

DZ47 MCB Micro Circuit Breaker

  • 1
  • 2

Brand Name : KRIPAL

Model Number : DZ47

Certification : CE

Place of Origin : China

MOQ : 1000 pcs

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 200000 pcs per month

Delivery Time : 20 days and depends on ordering quantity

Packaging Details : 12 poles packed in one small box and then in carton

Breaking capacity : 6 ka

Poles available : 1pole, 2 pole, 3 pole, 4pole

Ampere : 6A,10A,16A,20A,25A,32A,40A,50,63A

Voltage : 240V/415V

Curve : B; C; D

Patent : Design patent

Contact Now

DZ47 Mcb Mini Circuit Breaker

A circuit breaker is an automatically operated electrical switch designed to protect an electrical circuit from damage caused by overload or short circuit. Its basic function is to detect a fault condition and interrupt current flow. Unlike afuse, which operates once and then must be replaced, a circuit breaker can be reset (either manually or automatically) to resume normal operation. Circuit breakers are made in varying sizes, from small devices that protect an individual household appliance up to large switchgear designed to protect high voltage circuits feeding an entire city.

Product advantages:

1. completely independent intellectual property right,national utility model patent.


2. The overall is nice with sleek and smooth line.


3. It is easy to distinguish with different colors of different specifications.

4. It is comfortable to operate with embowed handles.

5. It is flexible to install and dismantle with creative design clips.

6. Setting oblate direction ,more beauty and more standard.

7. To meet customers needs with more connection styles.


8. Enhancing the ability of reflex arc when short circuit breaking with many improvements.

9. Enhancing the ability of extinction arc when short- circuit breaking with many improvements.

10. Short-circuit breaking capacity (ICS) of products get to 6KA combining many improvement.

Specitifcation:

Standard

IEC898,GB10963-99,EN60898

Number of poles

1P.2P.3P.4P

Rated current(In)

1,2,3,4,6,10,16,20,25,32,40,50,63

Rated voltage(Un)

AC240/415V

Rated frequency

50/60Hz

Tripping curve

B,C,D

Release action characteristics

Time delay

1.13In≥1h non-trip

1.45In<1h trip

2.55In 1S<60S trip

Instantaneous(Curve C)

5In≥0.1S non-trip

10In<0.1 trip

Magnetic releases operate

B curve:between 3 and 5In

C curve:between 5 and 10In

D curve:between 10 and 14In

Rated breaking capacity(Lcn)

3000A,4500A,6000A

Endurance

≥2000

Circumstance temperature

-5°c+40°c

Electrical life

≥6000times

Mechanical life

2000 times

Tropical ration

Treatmen 2(RH95%,at 55°c)

Protection degree

IP20

DZ47 MCB Micro Circuit BreakerDZ47 MCB Micro Circuit Breaker
